Features Supports a 32-bit 3.3V or 5V PCI bus Low-profile PCI MD1 form factor Fully compatible with IEEE 488 standard Up to 1.5MB/s data transfer rates Built-in 2 KB FIFO for read/write operations Provides APIs compatible with NI-488.2* driver software Supports industrial-standard VISA library Interactive utility for testing and diagnostics

Introduction ADLINK LPCI-3488A GPIB controller interface card, fully compatible with the IEEE 488 instrumentation control and communication standard, is capable of controlling up to 14 stand-alone instruments via IEEE 488 cables. It is designed to meet the requirements for high performance and maximum programming portability. The built-in 2KB FIFO and a block transfer mode provide up to 1.5 MB/s GPIB transfer rate. With the APIs that are compatible with NI-488.2* and VISA support, the LPCI-3488A provides the greatest compatibility with your existing applications and instrument drivers. (* NI-488.2 mentioned herein is the trademarks and properties of National Instruments Corporation.)

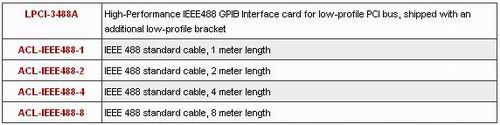

Ordering Information
