NIKKI DENSO 伺服電機

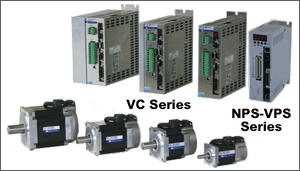

同步式交流伺服電機NA80系列，功率范圍包括從50瓦至750瓦（3000轉(zhuǎn)）。他們配備了17bit編碼器，它可以轉(zhuǎn)換為絕對編碼器。從50W到400W電機可用于VPS系列新型多功能伺服驅(qū)動器，使NA80系列表現(xiàn)出其最佳性能。

Servo motor type NA80-05 NA80-10 NA80-20 NA80-20 NA80-40 NA80-60 NA80-75 Power voltage V AC100V AC200V Motor frange size mm 40 60 60 80 Reted output W 50 100 200 200 400 600 750 Reted torque N.m 0.159 0.318 0.64 0.64 1.27 1.91 2.39 Kgf.cm 1.62 3.25 6.5 6.5 13.0 19.5 24.4 Peak output torque N.m 0.48 0.95 1.91 1.91 3.82 5.73 7.16 Kgf.cm 4.9 9.7 19.5 19.5 39 58.5 73 Rated speed r/min 3000 Maximum speed r/min 5000 Rated power rate kW/s 13.6 29.5 21.8 21.8 47.3 41.8 53.4 Rated current A rms 1.1 1.8 3.5 1.7 3.3 4.4 5.0 Peak Maximum current A rms 3.1 5.3 10 5.6 9.7 12.9 14.5 Torque constant N.m/A±10％ 0.16 0.19 0.20 0.39 0.40 0.45 0.50 Kgf.cm/A 1.64 1.88 2.00 3.99 4.05 4.58 5.08 Mechanical constant ms 0.9 0.7 0.9 0.9 0.6 0.6 0.6 Electrical constant ms 1.1 1.6 3.3 3.2 3.8 6.0 4.8 Rotor inertia Gf.cm.s 0.019(0.029) 0.035(0.045) 0.18(0.28) 0.18(0.28) 0.34(0.44) 0.87(1.10) 1.07(1.29) kW/s 0.019(0.030) 0.035(0.046) 0.19(0.28) 0.19(0.28) 0.35(0.45) 0.89(1.12) 1.09(1.32) Shaft friction torque N.m Max 0.02(0.04) 0.04(0.07) 0.04(0.07) 0.08(0.14) Kgf.cm Max 0.2(0.4) 0.4(0.7) 0.4(0.7) 0.8(1.4) Play in thrust direction mm Max 0.2 Allowable radial load N 78.4 196 196 343 kgf 8 20 20 35 Allowable thrust load N 39.2 68.6 68.6 98 kgf 4 7 7 10 Encoder   17bit Absolute/incremental Weight kg 0.4 (0.6) 0.5 (0.7) 0.9 (1.4) 0.9 (1.4) 1.3 (1.8) 2.2 (3.1) 2.5 (3.4) Insulation class Class F Insulation voltage AC1500V　for 1　min. Insulation resistance DC 500V, 100ＭΩor higher Environment Temperature ０～40度 Humidity 85％RH or lower No condensing Store temperature －10～85度 Protection class IP65except the connector, and shaft area Vibration 49m/s2　５Ｇor lower Shock 98m/s210G or lower except shaft Max. Temp. for sensor area Encoder 85度以下 About, Induction voltage constant　Phase resistance　Phase inductance, etc.. Please ask the sales office.

* 1: When it is running at 1/5000 of the rated speed, motor may not run smoothly. When load is 100%, the speed control range become a condition of motor not to stop. When matching with NA20 series motors, speed control range will be 1:3000. * 2: When the power-supply voltage descends, neither the declared power nor the ratings rotational speed are guaranteed. * 3: To be changed by the power supply impedance * 4: Please select the no fuse breaker according to the power supply capacity with enough block capacity for protection.

In regards of specifications, the mentioned values are based on the surroundings temperature 40 after our recommended heat sink is installed. The allowable radial load value is measure by the position of 20 mm from the installation surface. Each values are at the temperature of 20 to 30. The value without a/the common difference is becoming an authorized value.

Heat sink dimensions 50w, 100w 200 x 200 x T12 Aluminum plate 200w,400w 305 x 305 x T12 Aluminum plate 600w, 750w 305 x 305 x T12 Aluminum plate



Servomotor Model		NA80-05	NA80-10	NA80-20	NA80-40	NA80-60	NA80-75
Rated voltage	V	DC24V ±10％
Quiet friction torque	NmMIN	0.32		1.27		2.55
	Kgf.cmMIN	3.25		13		26
Consumption power	W	5		9		9.5
Release time	ms MAX	(20)		(20)		(50)
Suction time	ms MAX	(40)		(50)		(80)
Purpose		For holding still
