BCM Offers VIA C7/ CN700 Mini-ITX motherboard

http://www.kblhh.cn 2008-01-03 08:54 來源：必升科技股份有限公司

6/9/2007

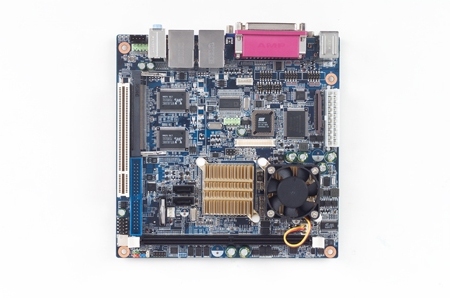

BCM announces the first in a series of VIA C7 Mini-ITX motherboards. MX700CN2-C10 features a fanless solution integrated with an onboard ultra low power VIA C7 1.0 GHz processor and a CN700 digital media chipset. Along with high speed performance and rich functionality, MX700CN2-C10 provides a cost-effective solution for Point-of-Sales (POS), KIOSK, thin client, digital signage, and medical applications.

BCM's MX700CN2-C10 leverages the VIA C7 processor and CN700 chipset, and supports up to 1GB 533MHz DDR2 memory. It offers an efficient multimedia platform that features advanced 2D/3D graphics, dual independent displays, dual 18/24-bit channel LVDS and 5.1 CH audio for dynamic, high-end sound.

Incorporating proven power efficiency and highly reliable performance, MX700CN2-C10 also supports multiple I/O and networking connections including one PCI expansion slot, one Ethernet LAN port, 2 serial ports, 2 SATA and 6 USB ports.

BCM delivers MX700CN2-C10 with extended services to meet all kinds of project needs upon request. Normally, BCM provides product life cycle management and renewal services to enable product longevity. Customers are encouraged to call for BCM's design service to speed the time to market.

Features

．VIA C7 1Ghz fanless processor onboard
．VIA CN700/VT8237R+
．One DIMM up to1GB DDR2 400/533 SDRAM
．Integrated UniChrome Pro 3D/2D Graphics & Video processor
．2-CH 18/24-bit LVDS
．5.1 CH Audio
．Realtek RTL8100CL 10/100 LAN
．1 PCI
．2 COM, 2 SATA, 6 USB 2.0

About BCM
BCM is a global supplier of motherboard and single board computer products for the industrial, OEM/ODM and embedded PC industry. We specialize in providing custom and off-the-shelf motherboards with an emphasis on long lifecycle, customization, revision-control, design support, and offer far greater flexibility and value when compared to other embedded board manufacturers.
