B4260M

Output Power輸出功率:10W~60W

Weight重量: 290g (Approx.)

Typical Application典型應用

Home Application: White Goods, Small Appliance, Fanner, Coffee Machine, Meat Grinder  家用電器：白色家電，小家電，無風葉電風扇，有風葉風扇，咖啡機，絞肉機

Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine  醫(yī)療器械：醫(yī)療泵，手術器械，攪拌機，離心機

Power Tools: Screwdriver, Drill, Air Compressor  電動工具：電動螺絲批，電鉆，氣體壓縮機

Business Equipment: Printer, Copier, Projector, ATM, Vending Machine  商業(yè)設備：打印機，復印機，投影機，ATM機，售賣機

Personal Care: Hair Dryer, Massager, Vibrator個人護理：風筒，按摩器，震動器

Model

型號

電壓Voltage(V)

No Load空載

Rated Load額定負載

Stall鎖定

Operating Range

Rated

Speed (rpm)

Current (A)

Torque (mNm)

Speed (rpm)

Current (A)

Output P. (W)

Torque (mNm)

Current (A)

B4260M-S01

210-240

220AC

10500

0.03

31

7800

0.09

16

170

0.58

B4260M-S02

16-26

24

8570

0.53

68

5770

2.80

41

208

7.36

B4260M-S03

9-16

12

4270

0.34

59

2525

2.36

15.6

144

5.29

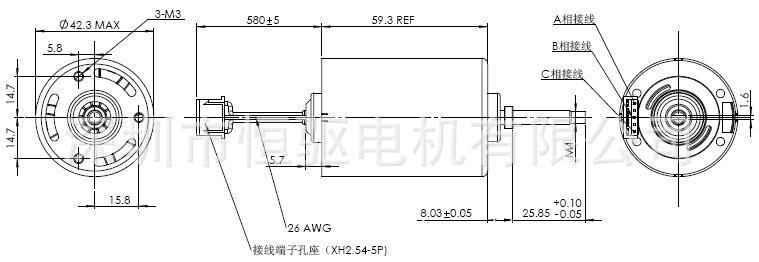

Usable machine screw length 6.0mm max. from motor mounting surface

Unit: Millimeter
