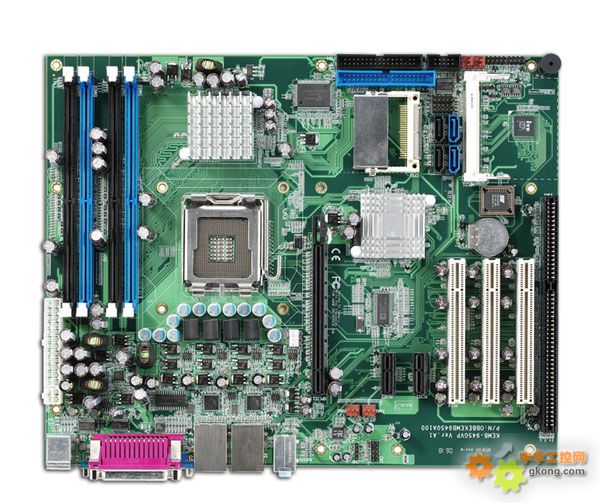

ATX Embedded Motherboard with Intel® Core™2 Duo/Pentium® D/Pentium® 4/Celeron® D and Intel® 945G + ICH7 chipset

主要特性

l         Supports Intel® Core™2 Duo, Pentium® D CPU on LGA775 socket

l         1066/800/533MHz Front Side Bus

l         Intel® Graphics Media Accelerator 950

l         Dual Channel DDR2 DIMM, maximum 4GB

l         Integrated PCI Express LAN, USB 2.0 and SATA 3Gb/s

產品介紹

The ATX-945G is an ATX form factor single-processor industrial motherboard that is based on the Intel® 945G chipset with ICH7 I/O Controller Hub. It supports the Intel® Core™2 Duo, Pentium® D, Pentium® 4 with Hyper-Threading Technology, or Celeron® D Processor on the LGA775 socket, 1066/800/533MHz Front Side Bus, Dual Channel DDR2 DIMM 667/533/400MHz, up to 4 DIMMs and a maximum of 4GB. The Intel® Graphic Media Accelerator 950 technology with 2048x1536x8bit at 75Hz resolution, PCI Express LAN, USB 2.0 (x8) and SATA round out the package for a powerful industrial PC. I/O features of the ATX-945G include a 32-bit/33MHz PCI Bus, 16-bit/8MHz ISA bus, 1x PCI Express x16 slot, 2x PCI Express x1 slots, 3x PCI slots, 1x ISA slot (shared w/ PCI), onboard Gigabit Ethernet, LPC, EIDE Ultra
