ETX Computer-on-Module with Intel® 855GME/852GM chipset
產品亮點
· CPU Support:
- Intel® Pentium® M Processor 478 μFC-PGA
- Intel® Celeron® M Processor 478 μFC-PGA
- Intel® Celeron® M Processor 479 μFC-BGA
· Four USB 2.0, two EIDE, two Serial, IrDA
· Intel® 855GME/ 852GM GMCH and ICH4
· DDR333 SODIMM up to 1GB
· Consumes 18W @ 5V typical (Celeron® M 1.3GHz)
· 24-bit Dual-Channel LVDS, TV-out, DVI
· Hardware Monitor, Watchdog Timer
特點詳情

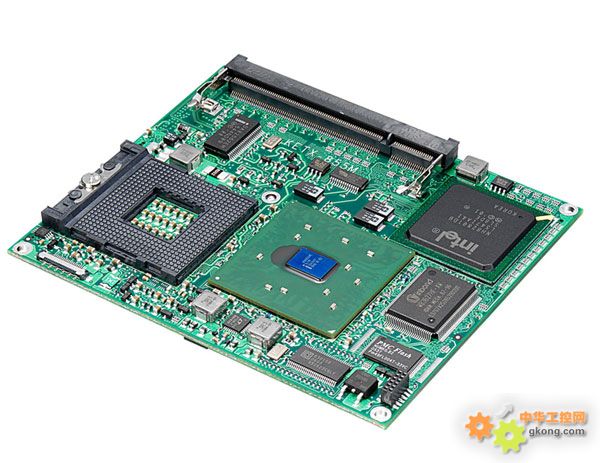

The ETX-CM is an ETX (Embedded Technology eXtended) form factor computer-on-module combining the performance of the Intel® Pentium® M Processor (up to 2MB L2 cache, μFC-PGA package) with the high integration of the Intel® 855GME chipset and I/O Controller Hub ICH4. Featured are a 400MHz processor system bus and 144-bit wide DDR266/333 SODIMM up to 1GB maximum. The ETX-CM is fully compliant with the ETX Component SBC™ Specification V2.7. This computer-on-module features a 32-bit/33MHz PCI Bus Interface, 24-bit LVDS, TV-out, DVI, USB v2.0, Ethernet, IDE, audio, serial ports, parallel port, and keyboard/mouse. The flexibility of the ETX computer-on-module concept allows the baseboard designer to optimize how each of these functions is physically implemented.
