產品亮點

• Socket P,支持Core 2 Extreme/Core 2 Duo/Celeron M處理器
• Intel GM45+ICH9M
• 2 x SO-DIMM, DDR2 800/667內存，高達4GB
• 支持VGA/DVI-D/LVDS/HDMI/TV-OUT,支持雙顯
• 2 x Realtek RTL8111C千兆網口
• 3 x RS232, 1 x RS232/422/485, 10 x USB2.0
• 1 x PCI, 1 x Mini-PCIe擴展槽

>> 系統參數

CPU                                 Socket P, 支持Penryn Intel Core 2 Extreme / Core 2 Duo / Celeron M處理器

芯片組                              Intel GM45 + ICH9M, 667/800/1066MHz FSB

DRAM                               2 x 200針 SO-DIMM DDR2 800/667內存，最高可達4GB

BIOS                                Award 8M Flash BIOS

電源                                支持ACPI 2.0 specification, ATX 24針 + ATX 4針

看門狗                              看門狗定時器功能

規格                                 170mm x 170mm

>> I/O 端口

硬盤                                 1 x 44針 IDE, 4 x SATAII接口, 支持RADI0/1/5/10

串口                              3 x RS232, 1 x RS232/422/485 COM端口

音頻                              Realtek ALC888 HD音頻解碼器, Mic-in / Line-in / Line-out

網口                                  2 x Realtek RTL8111C PCI-E千兆以太網接口

USB                                  10 x USB2.0 (4個接口+ 6x 針接頭)

數字IO                          1 x DIO接口, 4進 & 4出

擴展槽                           1 x PCI, 1 x Mini-PCIe擴展槽

>> 顯示

圖形                           集成Intel Gen5.0 graphics engine, 最高可達384M視頻內存

CRT                                   支持UXGA (1600x1200 @60Hz)

DVI                                   1 x DVI-I (僅單DVI-D)

HDMI                                 1 x HDMI

LVDS                                 1 x 24位雙通道LVDS接口

TV-OUT                              1 x TV-OUT接頭

>> 環境

運行溫度                              0°~60°C (32°~140°F)

相對濕度                            10~90%

訂購信息

Model                                  Description

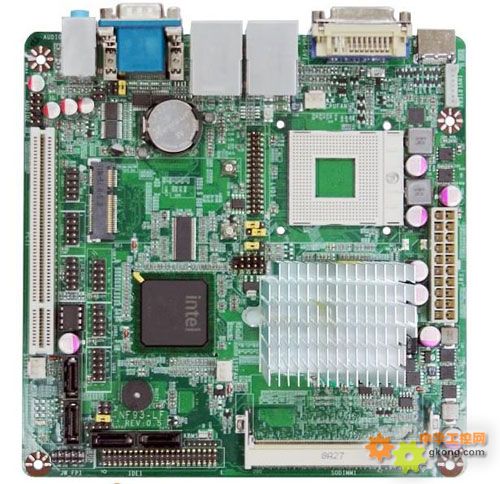

SYS76952VGGA-R                Intel GM45 Mini-ITX Board w VGA/2*Giga LAN/Audio/TV-OUT/RAID
