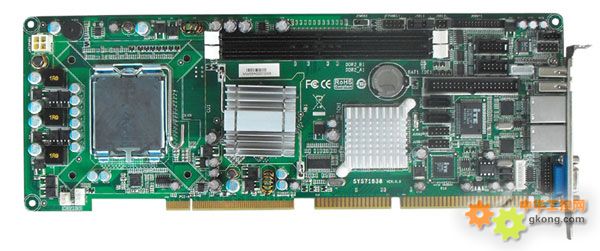

PICMG1.0 Intel 945GC全長CPU卡，支持/VGA/千兆網口/音頻

產品亮點

·         LGA775, Core 2 Duo /Pentium Dual-Core/Pentium EE/Pentium D/ Pentium 4/ Celeron D

·         Intel 945GC + ICH7 + FWH with 667/800/1066MHz

·         雙通道DDRII 5333/667/800內存，最高可達4GB

·         2 x Intel82574LPCI-E千兆網口

·          2 x SATAII, 1 x IDE

·          2 x 串口, 6 x USB2.0

特點詳情

>>系統參數

CPU                          LGA775, Core 2 Duo/Pentium Dual-Core/Pentium EE/Pentium D/Pentium 4/ Celeron D
芯片組                        Intel 945GC + ICH7 + FWH with 533/800/1066MHz

DRAM                         2 x 240針雙通道DDRII 533/667/800內存，最高可達4GB

BIOS                           4MB AMI BIOS

總線                             PICMG 1.0

電源                            支持ACPI V2.0規范

看門狗                           1~255秒可選看門狗計時器， w/Reaset/NMI

規格                           338mm x 122mm

>>前面板I/O端口

VGA                                    1 x DB-15 VGA端口

LAN                                    1 x RJ-45 LAN端口

USB                                    2 x USB 2.0/1.1端口

 >>I/O端口

SATA                                  2個串行ATA連接器

IDE                                    1個40針IDE接口

并口                                   1個并行打印口

 USB                                   2個接口支持4個外部附加的USB 2.0/1.1接口

鍵盤/鼠標                            1 x mini-DIN-6 PS/2 鍵盤&鼠標接口

COM                                  2個COM接口, COM1支持RS232, COM2支持RS232/422/485

音頻                                  1個前置音頻接口，支持for line-out and Mic-in jacks

CD-in                                1個CD-in內置音頻接口

電源                                  1 x 4針ATX +12V電源接口

風扇                                   2個電源端口

>>顯示

圖形                             Intel 圖形多媒體加速器950, 最大共享224MB內存

>>環境

運行溫度                          0°~60°C (32°~140°F)

相對濕度                           10~90%

Model                               Description

SYS71838VGGA                   PICMG1.0 Intel 945GC Full Size CPU Card w VGA/2*Giga LAN/Audio

SYS71838VGA                     PICMG1.0 Intel 945GC Full Size CPU Card w VGA/Giga LAN/Audio
