產品亮點

• LGA775, Intel Core 2 Extreme / Core 2 Quad / Core 2 Duo /Pentium Dual-Core /  Pentium EE / Pentium D /Pentium 4 / Celeron 400 with 45nm
• Intel Q35 + ICH9DO + 前端總線800/1066/1333MHz
• 雙通道DDRII 667/800/1066內存，高達4GB
• 1 x Intel PCI-E千兆網口
• 2個串行端口, 6個USB2.0口

特點詳情

>>系統參數

 CPU                   LGA775, Intel Core 2 Extreme / Core 2 Quad / Core 2 Duo /Pentium Dual-Core / Pentium EE /Pentium D / Pentium 4 / Celeron 400 with 45nm
芯片組                  Intel Q35 + ICH9DO + 前端總線800/1066/1333MHz
DRAM                   2 x 240針，雙通道DDRII667/800/1066內存，最高可達4GB
BIOS                    Award BIOS
總線                     PICMG 1.0
電源                     支持ACPI V2.0 specification
看門狗                   1~255秒可選看門狗定時器 w/Reaset/NMI
規格                      338.58mm x 122mm


>>I/O端口
HDD                                  4 x SATA-II接口支持RAID 0/1/5/10
串口                                  2個串行端口, COM1支持RS232, COM2支持RS232/422/485
并口                                  1個并口
音頻                                 IntelHD音頻編解碼器(可選)
鍵盤/鼠標                            1個微型DIN接口的PS / 2鍵盤和鼠標

網口                                   1 x Intel PCI-E千兆網口
USB                                   6 x USB2.0


>>顯示

圖形                              Intel 圖形媒體加速器X3100

>>環境

運行溫度                         0°~60°C (32°~140°F)
相對濕度                            10~90%

Model                              Description

SYS7190VGA                    PICMG1.0 Intel Q35 Full Size CPU Card w VGA/Giga LAN/Audio

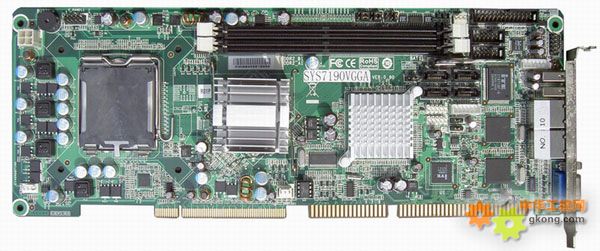

SYS7190VGGA                  PICMG1.0 Intel Q35 Full Size CPU Card w VGA/2*Giga LAN/Audio
