產品亮點

• 板載Intel Atom N270 (1.6GHz, 2W )處理器
• Intel 945GSE+ICH7M
• 1 x 200針SO-DIMM DDRII 533/667內存，最高可達2GB
• 2 x Realtek PCI-E千兆網口
• 4 x COM, 6 x USB2.0
• Mini-PCIe擴展槽

>> 系統參數

CPU                             板載Intel Atom N270(1.6GHz,4W) 處理器

芯片組                           Intel 945GSE + ICH7M

DRAM                                 1x 200PIN SO-DIMM DDRII 533/667 max up to 2GB

BIOS                                  AMI Plug & Play Flash ROM

電源                               支持ACPI v1.0 specification, DC 12V電源輸入

看門狗                              1-255能設置軟件實現超級I/O

規格                                146mmx102mm

>> I/O 端口

硬盤                                          2 x SATA-300 接口

固態硬盤                                   1個CF卡II接口

串口                        4 x COM接口,3*RS232,1*RS232/422/485

音頻                               RealtekALC662-VC HD音頻解碼器，line-out / line-in /Right/Left speaker out

鍵盤/鼠標               1 x mini-DIN 接口，支持PS/2鍵盤鼠標

網口                                   2 x Realtek RTL8111CPCI-E 千兆網口.支持WOL

USB                                    6 x USB2.0 (4 個板載接頭)

數字 I/O                          4路輸入; 4 路輸出

擴展槽                          1 x Mini-PCIe擴展槽

電源                                1 x 4針電源接口，支持ATX電源

>> 顯示

圖形                            Intel GMA950高達224MB視頻內存

VGA                                    2048x1536最大分辨率

LVDS                                  18位雙通道LVDS

>> 環境

運行溫度                          0°~60°C(32°~140°F)

相對濕度                            10~90%

訂購信息

Model                                 Description

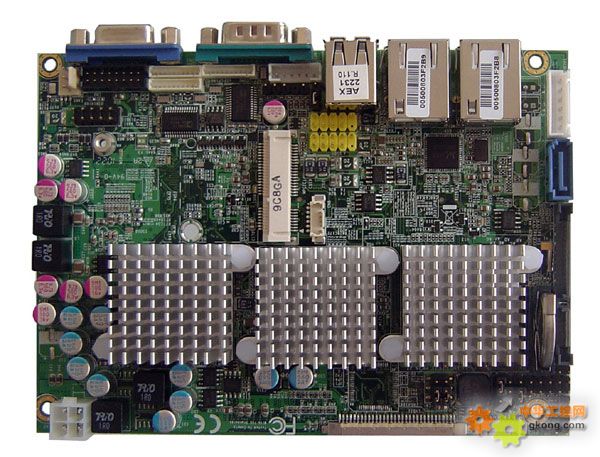

SYS7F833VGGA-270-18      Intel Atom N2703.5”CPU Board w VGA/2*Giga LAN/Audio/Mini-PCIe
