產品亮點

• LGA1156 Intel i3/i5/i7 處理器，FSB 4.8 GT/s
• Intel Ibex Peak 芯片組（Q57DO）
• 4 x 240針DDR3 1066/1333MHz DIMM內存，最高可達16GB
• 2 x PCI-E千兆網口
•  6 x SATAII, 支持RAID0/1/5/10
• 4 x COM, 12 x USB2.0, 8 x DIO
• 1 x PCI-Ex16,1 x PCI-Ex4,2 x PCI-Ex1,3 x PCI

特點詳情

>> 系統參數

CPU                          LGA1156 for Intel 45nmClarkdale i3/i5/i7處理器，FSB 4.8GT/s

芯片組                         Intel Ibex Peak芯片組（Q57DO）

DRAM                          4 x 240針 DDR3 1066/1333MHz DIMM內存，最高可達16GB

BIOS                            8MB Award Flash ROM

電源                             支持ACPI specification, ATX 24針電源接口

看門狗                          看門狗計時器功能

規格                             305mmx244mm

>> I/O端口

HDD                                6 x SATAII 接口, SATA最高速度達3Gb/s, 支持RADI0/1/5/10

軟驅                                1 x FDD接口

串口                                4 x RS232 COM接口(2個板載)

音頻                                 Realtek ALC 262 4-C通道高清音頻，line-out, line-in and mic-in

鍵盤/鼠標                         2 x mini-DIN接口支持PS/2 鍵盤鼠標

網口                                    1 x Realtek8111CPCI-E千兆網口

                                          1 x Intel 網絡接口，通過內置的PHY 支持PCI 擴展以太網

USB                                    12 x USB2.0/ (8個通過板載頭)

數字I/O                         1 x 8 位數字IO接口

擴展                          1 x PCI-Ex16(PCIe 2.0) ,1 x PCI-Ex4(PCIe 2.0),2 x PCI-Ex1(PCIe 2.0)

3 x PCI slots(PCI 2.3)

>> 顯示

VGA                                   1x VGA接口 ,2048x1536 @ 60MHz 最大分辨率

DVI                                    1 x DVI-I接口(僅支持DVI-D ) ,1600x1200 最大分辨率

>> 環境

運行溫度                             0°~60°C(32°~140°F)

相對濕度                             10~90%

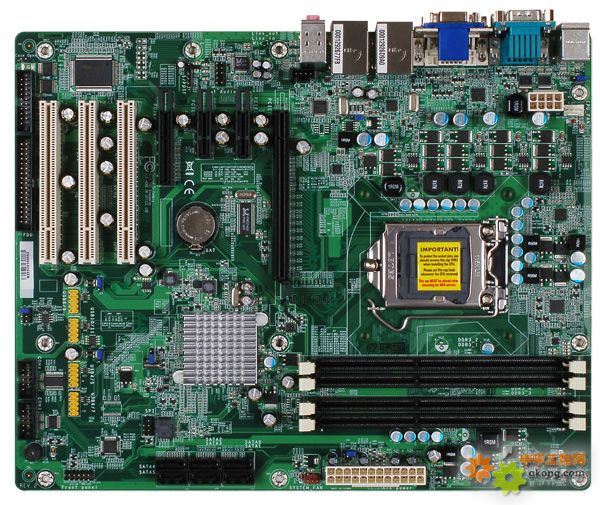

Model                          SYM76970VGGA

Description                 Intel Q57 ATX Board w VGA/2*Giga LAN/Audio
