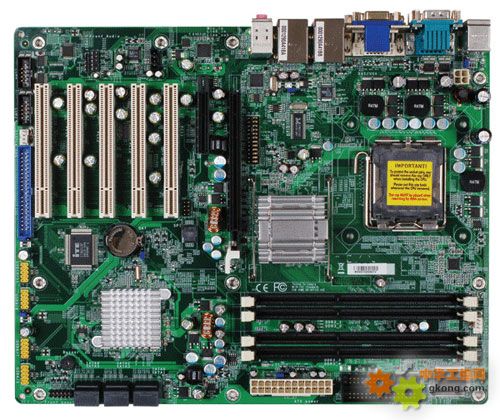

Intel Q45 ATX Board w VGA/2 Giga LAN/Audio

產品亮點

• LGA775 Intel Core 2 Quad / Core 2 Extreme / Core 2 Duo (45nm)
•  Intel Q45 + ICH10DO
•  DDRIII 800/1066內存，最高可達8GB
•  2 x PCI-E千兆網口
• 4 x COM口
• 12 x USB2.0
• 1 x PCI-EX16, 1 x PCI-EX4 , 5 x PCI插槽

特點詳情

>> 系統參數

CPU                                   LGA775 Intel Core 2 Quad / Core 2 Extreme / Core 2 Duo 45nm
芯片組                             Intel Q45 + ICH10DO, 800/1066/1333MHz
DRAM                                  4 x 240針 DDRIII 800/1066內存，最高可達8GB
BIOS                                   8MB Award SPI BIOS
電源                                 支持ACPI v1.0 specification
看門狗                             看門狗定時器功能

規格                                305mmx244mm

>> I/O 端口

硬盤                                    1 x IDE devices ATA100;6 x SATA-300 interface
串口                                    4 個串行接口
軟驅                                    1個軟驅接口
音頻                                 RealtekALC262 HD音頻解碼器
鍵盤/鼠標                       2 x mini-DIN接口支持PS/2 鍵盤和鼠標
網口                                    2 x Realtek RTL8111CPCI-E千兆網口
USB                                    12 x USB2.0
數字IO                             1 x DIO接口
機箱                               1 個機箱接口

擴展                               1 x PCI-Ex16, 1 x PCI-Ex4, 5 x PCI

>> 顯示

圖形                              Intel GMA4500,支持3D, 2D and 視頻 , DX10 和OpenGL 2.1
DVI                                     1 x DVI-I (僅單DVI-D）

>> 環境

運行溫度                                0°~60°C(32°~140°F)
相對濕度                                           10~90%

訂購信息

Model                                 SYM76950VGGA

Description                        Intel Q45 ATX Board w VGA/2 Giga LAN/Audio
