產品亮點

• Intel Core 2 Duo Mobile Penryn/Core 2
• Extreme /Celeron M (575/585) CPU
• Intel GM45 + ICH9M
• VGA /2*HDMI / 2個千兆網口/ 6*USB / 音頻/ 2*COM
• 支持一個PCI擴展槽
• 12V DC輸入ATX電源
• 支持DDR2 800/667MHz內存, 最大內存可達4GB
• 支持2.5″SATA2硬盤和44針IDE接口

處理器                         Intel Core 2 Duo Mobile Penryn/Core 2 Extreme /Celeron M (575/585) CPU（可選）

芯片組                           Intel GM45 + ICH9M

內存                              支持DDR2 800/667MHz內存, 最高可達4GB  (可選)

存儲                              支持2.5″SATA2 硬盤和44針IDE接口 (可選)

圖形                               Intel Gen 5.0集成圖形引擎, 最大系統共享內存1GB

前面板

                                     1個電源開關和電源指示燈

                                     1個硬盤指示燈

                                     1個COM端口

                                     2個USB接口

I/O端口

                                     1個DC12V電源輸入

                                     1個VGA口、2個HDMI口

                                     2個千兆網口(Intel 82574L)

                                     4個USB口  1個COM口

                                     1個PS/2接口

                                     1個Line-In/Line-Out/MIC-In

擴展                               支持1個PCI插槽

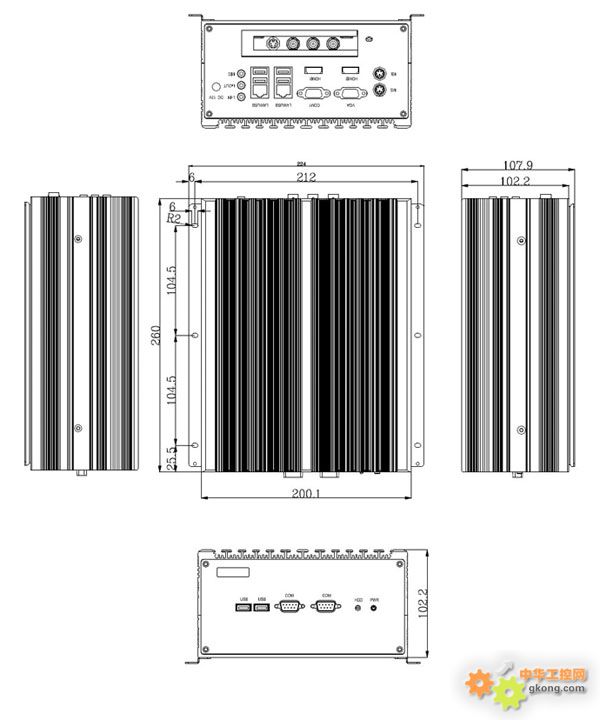

規格                               W:200mm D:260mm H:102mm

材質                               鋁+ SECC1.2 (黑)

電源

                                    直流適配器 (90W)

                                    輸入: 交流100~240V 1.5A 50~60MHz

                                    輸出 : 直流 12V 7.5A(最大)

溫度                             0~50 °C

濕度                    10~95% @40°C,非冷凝

訂購信息

Model                                           Description

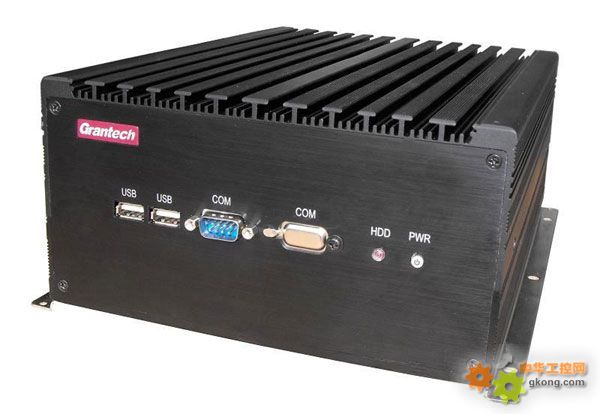

UFO6377H-SP1-953          Intel Core™2 Embedded Fanless Industrial PC with PCI slots
