產品亮點

• 板載Intel® Atom N270 1.6GHz
• Intel® 945GSE + ICH 7M
• VGA / 2個千兆網口 / 4USB / 音頻/ 4COM
• 支持2個PCI插槽
• +12V DC ATX電源輸入
• Supports 200 pin DDRII 667/800 MHz Memory
• Supports 2.5″SATA2 Hard Disk and Mini PciE

特點詳情

處理器                      Intel® Atom™ N270 (1.6GHz) @ TPD 2.5W
芯片組                      Intel® 945GSE + ICH7M
內存                          支持DDRII 667/800 MHz內存, 最高可達2G
硬盤                           支持2.5″SATA2硬盤 （可選）
顯卡                           Intel® 圖形媒體引擎950, 最大共享224MB顯存
前面板

                            1電源開關和電源指示燈
                            1硬盤狀態指示燈

                            2COM(232)
                            2USB
I/O 端口

                                  1DC12V輸入
                            1VGA端口 1DVI-D接口
                            2千兆網口

                            4USB接口 2COM口 (1*232/422/485 1*232)
                            1PS/2接口
                            1組Line-In/Line-Out/MIC-In
                            支持2PCI擴展槽和Mini PCI-E接口

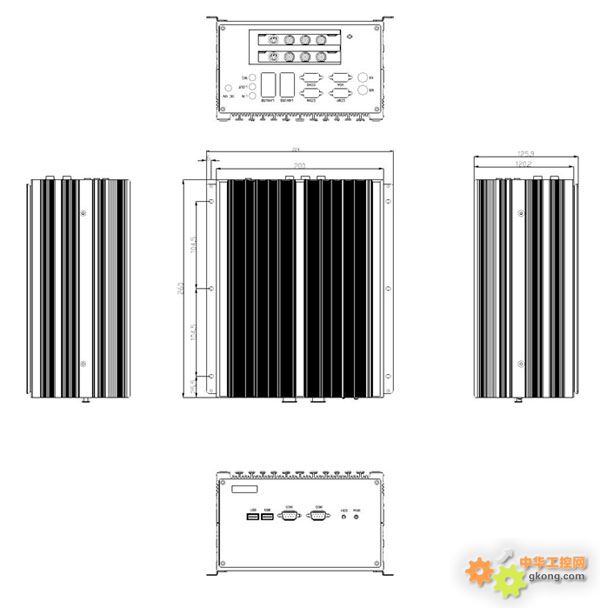

規格                            W:200mm D:260mm H:120.2mm
材質                             鋁 + SECC1.2 (黑色、銀色可選)
電源
                             直流電源適配器 (90W)
                             輸入 : AC100~240V 1.5A 50~60MHz
                             輸出 : DC 12V 7.5A(MAX)
重量                             4.77KG
運行環境

                             運行溫度     0~50 °C
                             相對濕度     10~95% @40°C,無冷凝

訂購信息

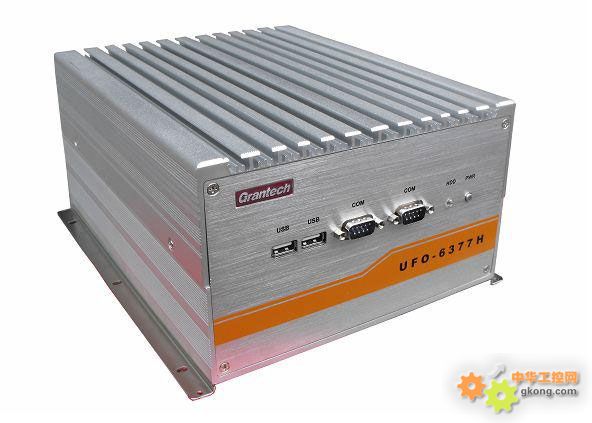

Model              UFO6377H-833-4C

SPEC               Intel Atom N270 Embedded Fanless Industrial PC with Two PCI slots
