Supports Intel® SV/LV/ULV-i7/ i5/ i3/ Celeron CPU |
| · |
The latest Intel® QM57/ HM55 Chipset |
| · |
Two SODIMM support up to 8GB dual channel 1066MHz DDR3 SDRAM |
| · |
The latest Intel® Arrandale Integrated Graphic Device supports multiple dual display functions : VGA+LVDS, VGA+DP, VGA+HDMI |
| · |
Realtek ALC888, 5.1 + 2 Channel with Multiple Streaming HD Audio |
| · |
Advanced Intel® 82577-LM Gigabit LAN chip |
| · |
1 PCI-E x16 (PEG & SDVO), 1 Mini PCI-E x1 |
| · |
2 COM with power, 8 USB 2.0, 4 SATA II, 1 DisplayPort, 1 HDMI, 1 VGA, 1 LVDS, 1 LVDS backlight |  Specifications
| System |
| CPU |
|
Intel® SV/LV/ULV-i7/ i5/ i3/ Celeron |
| BIOS |
|
Insyde uEFI 64Mb SPI BIOS |
| System Chipset |
|
Intel® QM57/HM55 |
| I/O Chip |
|
Winbond W83667HG-A |
| System Memory |
|
Two SODIMM support up to 8GB dual channel
DDR3 1066/ 800 SDRAM |
| Watchdog Timer |
|
Reset : 1 to 255 sec/min per step |
| H/W Status Monitor |
|
Monitoring CPU temperature, voltage, and cooling fan status. Auto throttling control when CPU overheats |
| Expansion |
|
1 PCI-E x 16 (PEG & SDVO), 1 Mini PCI-E x1 |
| Power State |
|
S1, S3, S4, S5 |
| Wake up on LAN or Ring |
|
WOL & WOR |
| SmartFan Control |
|
Yes |
| I/O |
| MIO |
|
2 COM RS-232 (1F/1R) with power, 4 SATA II, 1 DisplayPort, 1 HDMI, 1 VGA, 1 LVDS, 1 LVDS Backlight |
| USB |
|
8 USB 2.0 (4F/4R) |
| GPIO |
|
8-bit General Purpose I/O for 4-bit DI and 4-bit DO |
| Display |
| Chipset |
|
Intel® QM57/ HM55 |
| Display Memory |
|
Intel Arrandale IGD supports DVMT 5.0 |
| Max. Resolution |
|
2048 x 1536 @ 75 MHz |
| Dual Display |
|
VGA+LVDS, VGA+DP, VGA+HDMI |
| VGA |
|
On board |
| LVDS |
|
Yes, through internal LVDS connector |
| LVDS Backlight Power Connector |
|
Yes, through internal LVDS Backlight Connector |
| DisplayPort |
|
On board |
| DVI |
|
No, need DVI Dongle (from DP connector) |
| HDMI |
|
On Board (HDMI 1.3) |
| Audio |
| Audio Codec |
|
Realtek ALC888, 5.1 + 2 Channel with Multiple Streaming HD Audio |
| Audio Interface |
|
Line-in, Line-out, Mic-in |
| Ethernet |
| LAN 1 |
|
Intel 82577-LM Gigabit LAN |
| LAN 2 |
|
Realtek RTL8111C Gigabit LAN |
| Back Panel I/O Port |
| Back Panel I/O Port |
|
1 PS/2 Keyboard,
1 PS/2 Mouse,
1 DisplayPort,
1 HDMI Port,
1 VGA Port,
1 COM RS-232 Port,
2 LAN RJ45 Ports,
2 USB 2.0 Ports,
Audio I/O (3 jacks) |
| Internal I/O Connector |
| Internal I/O Connector |
|
2 USB Connectors support 4 USB Ports,
1 LDVS Connector,
1 Backlight Connector,
4 SATA Connectors,
1 CPU Fan Connector,
1 Chassis Fan Connector,
1 Front Panel Header,
1 RS-232 Pin Header,
1 GPIO,
1 Front Audio Header |
| Mechanical & Environmental |
| Power Requirement |
|
+12V +5V +3.3V 5VSB
1.66A 3.51A 1.08A 570mA |
| Power Type |
|
ATX |
| Power Connector |
|
1 24-pin ATX Power Connector,
1 4-pin ATX 12V Power Connector |
| Operating Temperature |
|
0 to 60°C (32 to 140°F) |
| Operating Humidity |
|
0% to 90% relative humidity, non-condensing |
| Size (L x W) |
|
6.69" x 6.69" (170 mm x 170 mm) |
| Weight |
|
1.03lbs (0.47Kg) |
| Ordering Information |
 |
IX57QM
90I-QM5701-M0000B2

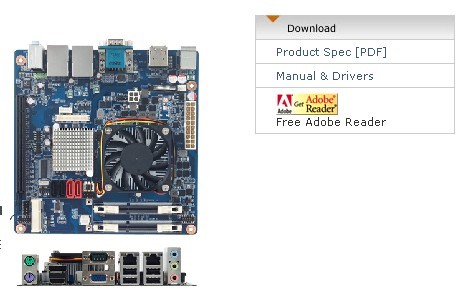

IX57QM Mini-ITX Motherboard |
|
